Estimated shipping date: Same day for orders by 3 p.m. C.T.

Prodex Total 4 ft x 25 ft. OUT OF STOCK

$ 69.95 $ 79.95 You save 12.510%
Prodex Total 4 ft x 25 ft. OUT OF STOCK Search Product

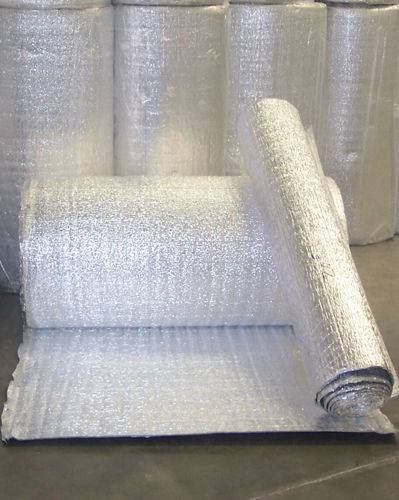

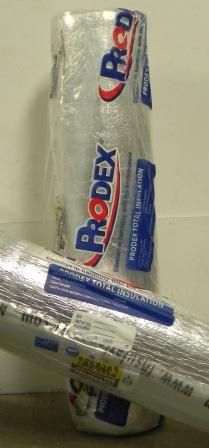

One 4 ft. x 25 ft. roll. Core sealed on both 25' sides with flange. Prodex 4 ft. x 25. ft is More than a Radiant barrier - It's Also a Reflective Insulation (R-value 16) And a Vapor Barrier - All in one product! One solution for Heat, Condensation and Cold.




Click to enlarge

Nominal thickness 5mm (+ or - 0.5mm) 0.2 inch



Click to enlarge

Creases in foil creates more airflow to enhance performance



Insulation Layers

Aluminum Foil

Polyethylene backing

Closed-cell polyethylene foam

Polyethylene backing

Aluminum Foil

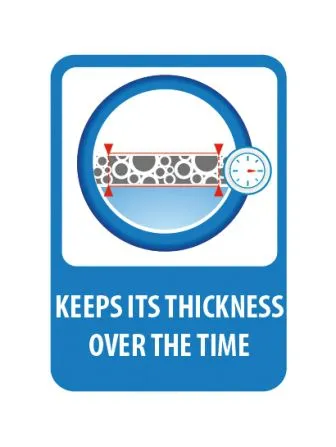

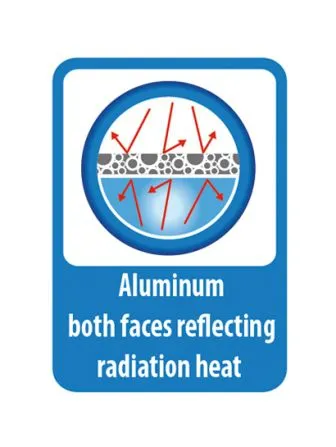

Prodex Difference: Energy Star Qualified : ICC-ES Recognized : R 16 unaffected by humidity : Prevents 97% of radiant heat transfer : Vapor barrier : UV resistance : Elastic : 19dba noise reduction : 90 degree celsius (194 fahrenheit) contact temperature rating : Does not promote mold or mildew : Does not provide for nesting of rodents, bugs or birds : Seals around nails (no leak) : Reflective aluminum foil on each side of 5mm (13/64) closed-cell polyethylene foam center : Keeps its shape over time (doesn't collapse) : Member of US Green Building Council - Made with 100% recyclable virgin raw materials : Over 2 billion square feet sold worldwide. Click to compare to other insulations. Read Prodex insulation reviews top left of page. Click for installation instructions.



Prodex Total 4 ft x 25 ft. OUT OF STOCK Search Product



Prodex Total 4 ft. x 25 ft Insulation combines the benefits of insulation with vapor and radiant barrier protection. That means you'll have a cool, dry structure in the summer and a warm, dry structure in the winter. It is used as a stand-alone or supplemental insulation. Applications include pole barns, metal buildings, attics, garages, roofs, basements, crawlspaces, radiant floor heating, walls, air ducts, under concrete and more. ICC-ES recognized and Energy Star Qualified. Prodex works well in hot and cold climates. Other benefits include sound deadening and easy installation. Reflective aluminum foil on each side of 5mm (13/64) closed-cell polyethylene foam center.

Compare Prodex 4 ft. x 25 ft. to fiberglass, radiant barriers, cellulose, rigid board, rock wool, double bubble.

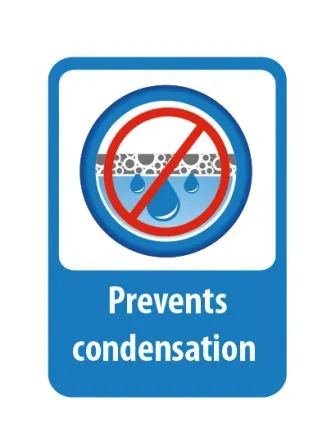

To improve performance, tape seams with reflective tape. Heat and cold will seek the least resistance and find it at the seams. Taping the seams also helps to prevent condensation.

Questions? Click FAQ

Technical Information


Prodex Total Insulation
*R-value 15.67 (One layer )

*R-value 21.10 (Two layers)

CharacteristicsValueRegulation
Cell StructureClosed cell polyethylene foam
Nominal Thickness13/64 inch 5 mm
Perm RatingLess than 0.1 (class 1 vapor barrier)ASTM E-96
Noise Reduction19dba impact noiseIRAM 4063
Flame Spread Index25 or lessE84-10
Smoke Developed Index45 or lessE84-10
UL 723, UBC 8-1, NFPA 255, MSDS sheet
 *Parameters of test: 24-inch on center 2" x 6" wood assembly. Roof application. Test method ASTM 1116. Airspace of 2.64 inch on each side of product. Heat-flow direction down. Interior side of product exposed. ICC-ES Recognized and Energy Star Qualified. Compliance with International and Residential Code (IBC) 2006 and 2009. If code approval is required, please provide this page to your local code official. We are notable to expand over the phone the test results displayed on this page.

Approval questions should be posed to your local code official. Questions?

For suggested installation methods click install

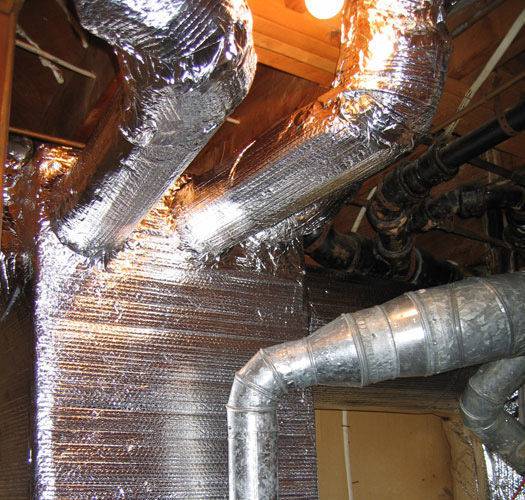

Air Ducts: 10 to 30 percent of the energy used to heat and cool the air is lost to conduction through the duct surfaces. More...

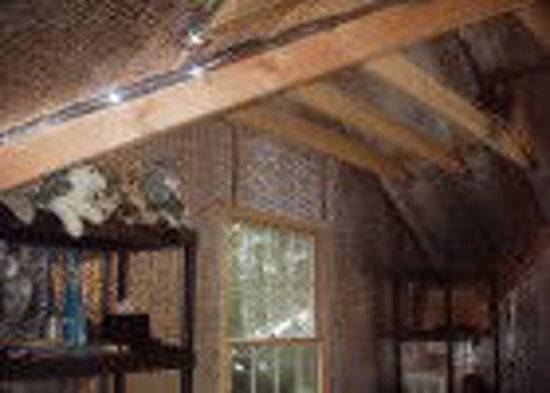

Attics: A new generation attic radiant barrier not only reduces air conditioning bills - It also reduces heating bills. More...

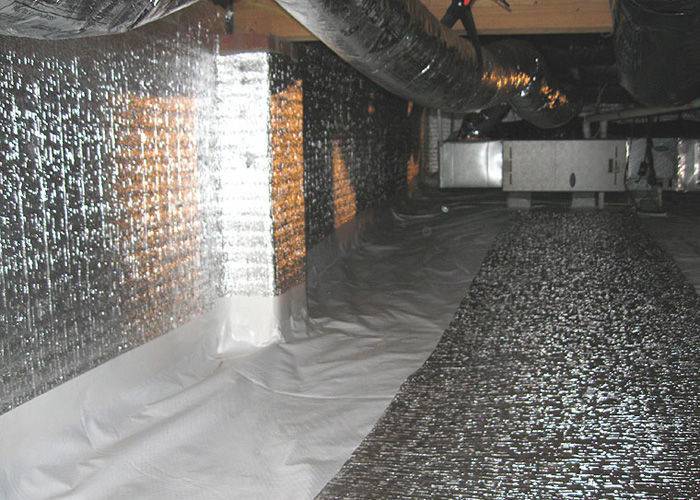

Basements and Crawlspaces: Due to their underground environment, basements and crawl spaces have different insulation requirements than the house above. More...
Garages: Insulate the wall between the garage and the rest of the house. This will reduce heat, cold and noise from coming into your home. More...

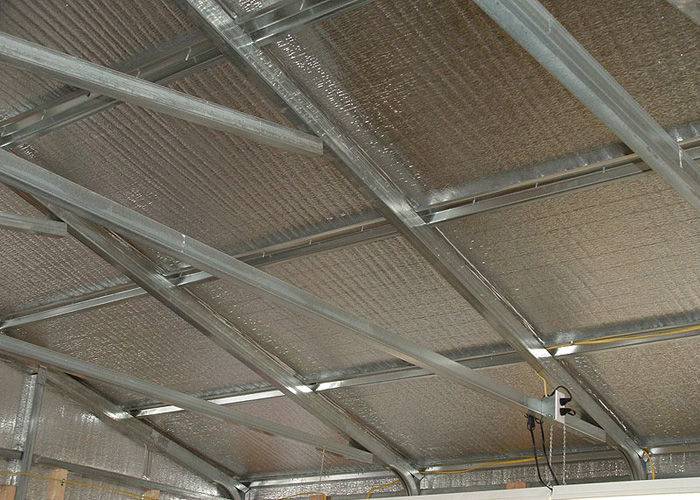

Metal Buildings: Ever wonder why it's so hot and wet inside a metal building in the summer and so cold and wet in winter? More...

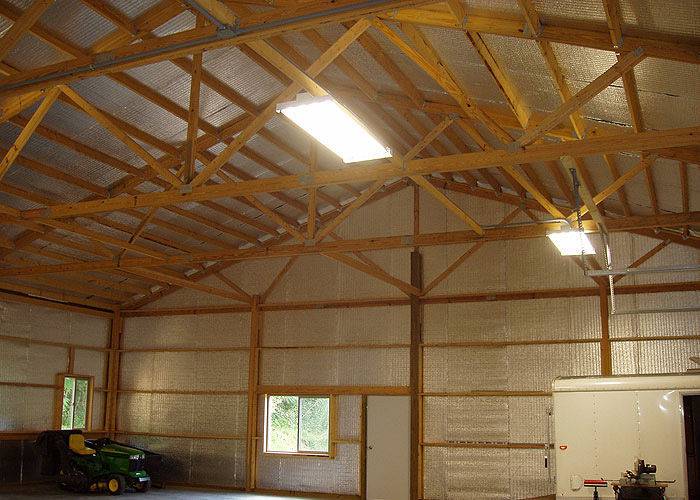

Pole Barns: The best insulation for a pole barns will keep the inside of the structure cool in summer, warm in winter and dry all the time. More...
Poultry Houses: A little known natural phenomenon called the "black-globe effect" has a pronounced stress factor relating to the cost efficiency (or inefficiency) of weight gain in meat producing animals and birds. More...
Roofs: Because heat rises, you'll have more winter heat loss through your through your walls. More...
Walls: Radiation accounts for 65-85 percent of all heat transfer through walls. More...

Click for more applications

Other Prodex Total Products to Consider


Prodex Fast Action: One 4 ft x 175 ft (700 sq ft) roll with convenient staple tabs and adhesive on rolls. Prodex Fast Action is identical to Prodex 48 Inch with the exception of having adhesive running 175 feet on one side of roll.
Prodex Total 24 Inch: Set of (2) two 24 inch x 175 ft rolls (700 sq ft total) packaged in one bag. Convenient staple tabs. Nominal width designed for 24 inch on center studs.
.
Prodex Total 16 Inch: Set of (3) three 16 inch x 175 ft rolls (700 sq ft total) packaged in one bag. Convenient staple tabs. Nominal width designed for 16 inch on center studs.
Prodex 72 Inch: One 6 ft x 100 ft (600 sq. ft.) roll with convenient staple tabs.
Prodex Perforated: 4 ft x 175 ft (700 sq. ft.) roll with convenient staple tabs.
Prodex Under Concrete Insulation: 4 ft. x 175 ft. (700 sq. ft.) roll with convenient flange tabs for overlapping. Perfect for driveways and basements. Reflective aluminum foil attached to 5mm (13/64 inch) closed-cell polyethylene foam.
Prodex Garage Door Insulation kit: One - 24 Inch x 87 ft (174 sq. ft.) roll of Prodex Total Insulation + One roll of double sided adhesive tape (1-1/2 Inch x 60 yards) + One roll of reflective tape (2 Inch x 60 yards).
Prodex Assorted Cut Pieces: Approximately 525 to 650 square feet of assorted cut lengths of 4 foot wide (48 Inch) Prodex Total Insulation pieces. The lengths of the pieces typically range from 6 ft to 24 ft.
Prodex Total 10M: One 4 ft x 85.3 roll (342 sq. ft.) 10mm (0.4") - Twice as thick as regular Prodex, Increased R, More longitudinal strength + improved tearing resistance, Reduced condensation
