This insulation product consists of 1 layer of 5/32" polyethylene bubble that is sandwiched between two metalized, low emissivity surfaces. The polyethylene encapsulated air bubbles serve as an effective thermal break as well as a vapor barrier while the two outer metalized surfaces reflect up to 96% of all radiant energy. Important - Use reflective tape to seal seams which improves performance. Compare to Double Bubble or Prodex Total Insulation.
Technical Information
| Characteristics | Value |
|---|
| Nominal Thickness | 5/32 in. |
| Tensile Strength | 14.6 lb |
| Tear Strength | 4.9 lb |
| Width (in.) of roll | 48 |
| Length (ft.) | 125 |
| Diameter (in.) | 17.5 |
| Coverage (Sq. Ft.) | 500 |
| Weight (lbs) | 24 |
| APPLICATION CONDITIONS |
| Temperature | -50°F minimum, 180°maximum |
| PERFORMANCE CHARACTERISTICS |
| Thermal performance |
| Emissivity: (ASTM C1371) | 0.04-.0.05 |
| Reflectivity | 95 - 96% |
| R Values |
| Heat flow down | 14.1 |
| Heat flow up | 8.6 |
| Heat flow horizontal | 9.7 |
| Falme Spread/Smoke Spread: ASTM E84/2599-08, Class A/Class 1 |
| Water Vapor Permeance |
| Method | ASTM E96 |
| Result | 0.000 |
The R value of the system will vary dependent on the airspace size.
| INSULATION LAYERS |
|---|
| Reflective Surface |
| Polyethylene backing |
| Polyethylene bubble |
| Polyethylene backing |
| Reflective Surface |
KEY BENEFITS/ FEATURES
- Double-Sided Foil
- Vapor Barrier
- Radiant Barrier
- Class A / Class 1 Fire Rating - Flame spread
- Clean
- Lightweight
- Very Strong
- Saves Money and Energy
- 5/32" thick
- 100% waterproof

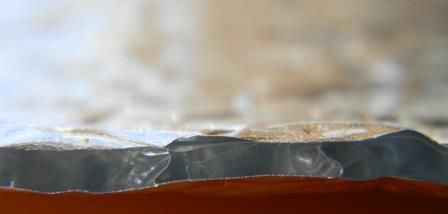

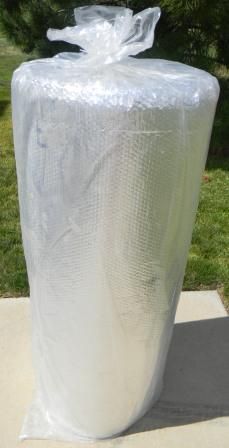

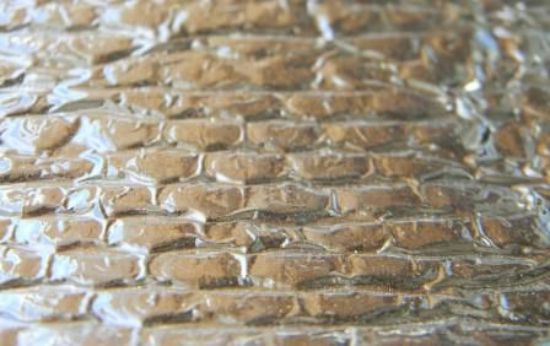

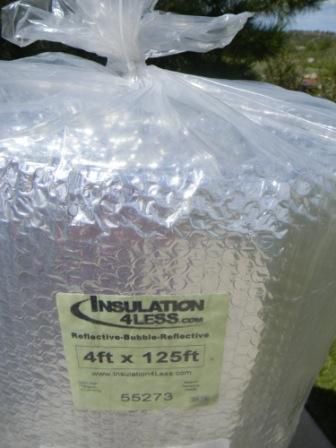

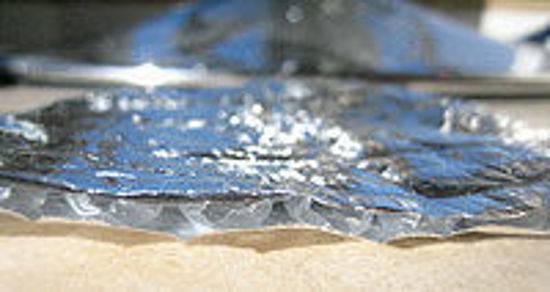

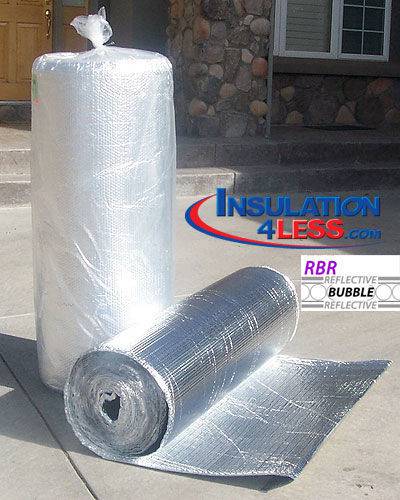

Photos of Prodex Total Insulation
