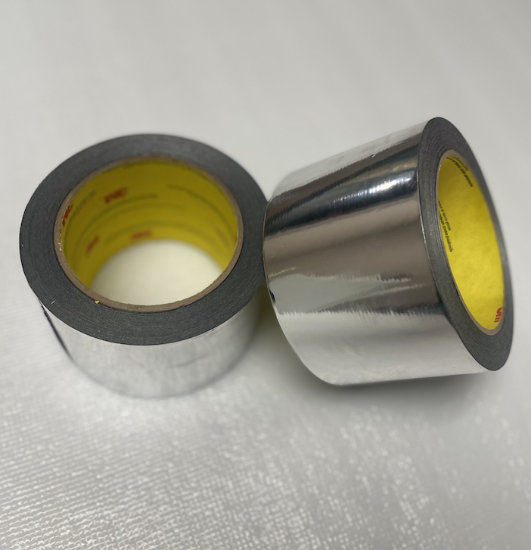

Reflective Tape 4 Reflective Tape 4 rolls, 2.83 in x 60.1 yards ea.
REFLECTIVE TAPE: Sold in sets of 4 rolls (60.1 yards each). Total = 2.83 inch x 240.4 yards.
Serves 2250 sq. ft. of insulation.
REFLECTIVE TAPE: Sold in sets of 4 rolls (60.1 yards each). Total = 2.83 inch x 240.4 yards.
Serves 2250 sq. ft. of insulation
Other reflective tape packages:
Reflective Tape 2 rolls
Reflective Tape 6 rolls
Reflective Tape 8 rolls
Reflective Tape 16 rolls
Important! Tape seams to improve insulation performance. Heat and Cold will seek the least resistance and find the openings at the seams. This tape is specifically made to keep the cold and heat out. The adhesive will perform well in either sub-zero cold, dry or tropical temperatures.
Ship dimensions: L: 12" W: 12" H: 4" Lbs: 5
REFLECTIVE TAPE: Sold in sets of 4 rolls (60.1 yards each). Total = 2.83 inch x 240.4 yards.
Serves 2250 sq. ft. of insulation.
| Test | Typical Value | Typical Value Metric | Test Method |
|---|---|---|---|
| Product Thickness (Total) | 3.0 mils | 76.2 µm | PSTC-133 |
| Thickness (carrier) | 1.5 mils | 38.1 µm | PSTC-133 |
| Thickness (adhesive) | 1.5 mils | 38.1 µm | PSTC-133 |
| Peel Adhesion | 41 oz/in | 11.4 N/25mm | PSTC-101 |
| Shear Strength | > 168 hours | > 168 hours | PSTC-107 |
| Tensile Strength | 22 lb/in width | 98 N/25 mm width | PSTC-131 |
| Elongation | 150% | 150% | PSTC-131 |
| Min App Temp | -35 ° F | -37 ° C | |
| Max Continuous Temp | 260 ° F | 127 ° C | |
| Max Intermittent Temp | 300 ° F | 149 ° C |
Use with our products include: All Prodex Total Insulation and Reflective-Bubble-Reflective Insulation (RBR)
Sealing foil insulation in high and low temperature extremes. Tape seams to improve insulation performance and create vapor barrier (important). It can also be used to patch reflective insulations.
This adhesive will perform well in either sub-zero cold, dry or tropical temperatures.
Reflective Tape1: 3-mil (76µ) UV resistant bi-axially oriented polypropylene (BOPP) tape coated with a CW® cold weather solvent acrylic adhesive. Reflective Tape1 replaces cloth duct tape, lasts longer and will not delaminate with age. Reflective Tape1 provides easy application and superior performance and durability over a wide range of temperatures and environmental conditions.
- Direct replacement for traditional duct tape
- UV resistant
- Will not break down or delaminate over time
- High performance line set tape performs well over a wide temperature range
- CW® all weather acrylic adhesive applies easily at temperatures as cold as -35°F
- Higher adhesion and tack than traditional cloth duct tapes
Typical values are not intended to be used for specification development. Technical data is believed to be true and accurate. We recommend that the purchaser test for fitness of use in all applications.
