availability : 264 in stock

Estimated shipping date: Same day for orders by 2:00 PM CT

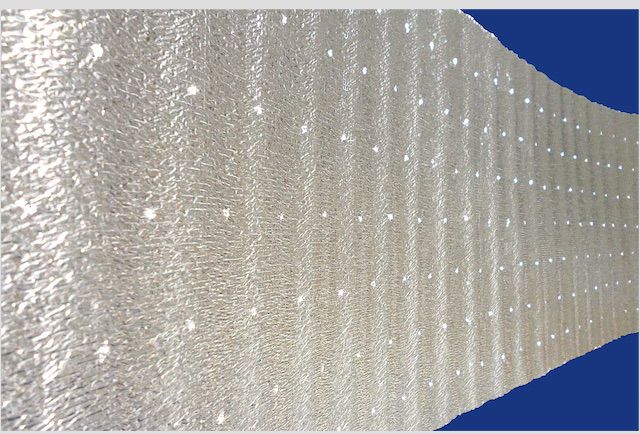

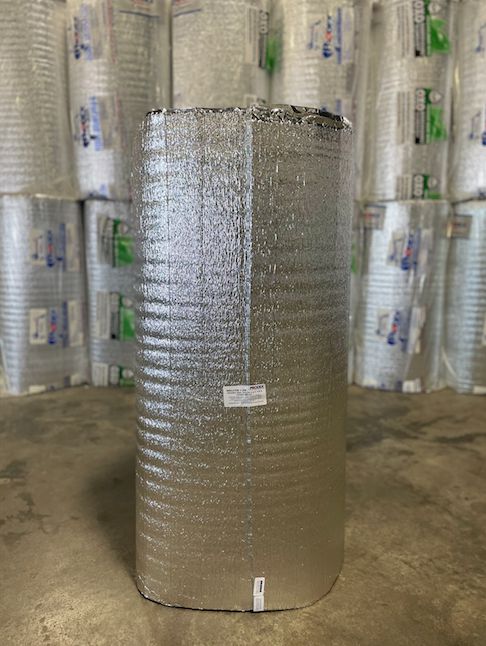

PERFORATED Prodex Total 5M Plus 4 ft X 175 ft (700 sq ft)

$344.95 $444.95 You save 22.470%

PREFORATED : 4 ft x 175 ft (700 sq ft) Prodex Total 5M Plus

HIGHER R | STRONGER | SAFER


R-value 17 - Improved Tearing Resistance - Flame Spread 0

Insulation + Radiant barrier + Vapor Barrier + Air Barrier All in one product!


One solution for Heat, Condensation, Cold and Airflow. Reflective reinforced foil on each side of 5mm (0.2 inch) closed-cell polyethylene foam center.
Ship dimensions: L: 48" W: 24" H: 24" Lbs: 27



Prodex Difference: R 17 unaffected by humidity : Prevents condensation : Prevents 97% of radiant heat transfer : Vapor barrier : Core sealed on both sides with flange : Elastic : Does not promote mold or mildew : Does not provide for nesting of rodents, bugs or birds : Seals around nails (no leak) : ICC-ES Recognized : Reflective reinforced foil on each side of 5mm (0.2 inch) closed-cell polyethylene foam center : Keeps its shape over time (doesn't collapse) : Rippled surface increases airflow : Green Product Certified : Over 4 billion square feet sold worldwide.




Click to enlarge

Nominal thickness 5mm (+ or - 0.5mm) 0.2 inch



Click to enlarge



Insulation Layers

Reflective reinforced foil

Polyethylene backing

Closed-cell polyethylene foam

Polyethylene backing

Reflective reinforced foil

Ask a question about this product?

Preforated - Prodex Total 5M Plus Insulation - "A" to "A+" BBB rating, Independent customer reviews by Site Jabber and over 4 billion sq. ft. sold worldwide - Combines the benefits of insulation with vapor, air and radiant barrier protection. That means you'll have a cool, dry structure in the summer and a warm, dry structure in the winter.

Prodex works great in hot and cold climates.

Reflective Insulation - The R-values of reflective and mass insulation are based on the same fundamental equation -- The ability to stop heat transfer.

Double Bubble Insulation - What is the difference between Radiant Barriers, Bubble Insulation and Prodex Total?

Questions? Click FAQ

Prodex Total 5M Plus
R-value 17 (One layer *A)

R-value 25 (Two layers *B)



Technical Brochure

How R-values are measured

CharacteristicsValueRegulation
Nominal Thickness0.20" |  5 mm
Flame Spread Index0ASTM E 84-10
Smoke Developed Index5ASTM E 84-10
Fungi ResistanceNo growthASTM C 1338
Tensile Strength at Break (MD)17.27 Lbf/inchASTM D-638
Perms2.35ASTM E-9605
Temperature and Humidity Resistance: No corrosion, no delamination, no loss of metallization - ASTM C-1258-08

Cell Structure - Closed

Approval questions should be posed to your local code official. Questions?



  • Attics: A new generation attic radiant barrier not only reduces air conditioning bills - It also reduces heating bills.
  • House-wrap insulation: House-wrap insulation serves as a weather barrier while adding R-value. It allows water vapor to pass from the interior to the exterior while preventing rain from getting into the wall assembly.

Resistance to Growth of FUNGI

Aspergillus niger

Aspergillus avus

Aspergillus versicolor

Penicillium funiculosum

Chaetomium globosum

ASTM C 1338

Prodex Fast Action: One 4 ft x 175 ft (700 sq ft) roll with convenient staple tabs and adhesive on rolls. Prodex Fast Action is identical to Prodex 48 Inch with the exception of having adhesive running 175 feet on one side of roll.
Prodex Total 24 Inch: Set of (2) two 24 inch x 175 ft rolls (700 sq ft total) packaged in one bag. Convenient staple tabs. Nominal width designed for 24 inch on center studs.
.
Prodex Total 16 Inch: Set of (3) three 16 inch x 175 ft rolls (700 sq ft total) packaged in one bag. Convenient staple tabs. Nominal width designed for 16 inch on center studs.
Prodex 72 Inch: One 6 ft x 100 ft (600 sq. ft.) roll with convenient staple tabs.
Prodex Under Concrete Insulation: 4 ft. x 175 ft. (700 sq. ft.) roll with convenient flange tabs for overlapping. Perfect for driveways and basements. Reflective aluminum foil attached to 5mm (13/64 inch) closed-cell polyethylene foam.
Prodex 4 ft x 50 ft (200 sq ft)
Prodex Garage Door Insulation kit: One - 24 Inch x 87 ft (174 sq. ft.) roll of Prodex Total Insulation + One roll of double sided adhesive tape (1-1/2 Inch x 60 yards) + One roll of reflective tape (2 Inch x 60 yards).
Prodex Assorted Cut Pieces: Approximately 525 to 650 square feet of assorted cut lengths of 4 foot wide (48 Inch) Prodex Total Insulation pieces. The lengths of the pieces typically range from 6 ft to 24 ft.
Prodex Total 10M: One 4 ft x 85.3 roll (342 sq. ft.) 10mm (0.4") - Twice as thick as regular Prodex, Increased R, More longitudinal strength + improved tearing resistance, Reduced condensation
