availability : 38 in stock

Estimated shipping date: Same Day for order by 2:00 PM CT

4 ft x 50 ft WHITE Prodex Total 5M Plus (200 sq ft)

$ 194.95 $ 229.95 You save 15.220%

FREE Shipping TODAY on 2 or more rolls

HI, AK and Canada excluded.

WHITE : 4 ft x 50 ft (200 sq ft) Prodex Total 5M Plus

HIGHER R | STRONGER | SAFER


R-value 15.3 - Improved Tearing Resistance - Flame Spread 0

Insulation + Radiant barrier + Vapor Barrier + Air Barrier All in one product!

REFLECTIVE REINFORCED FOIL + POLYETHYLENE FOAM.
+ UV RESISTANT WHITE FACER.


Ideal for applications where attractive white facing is preferred.

One solution for Heat, Condensation, Cold.

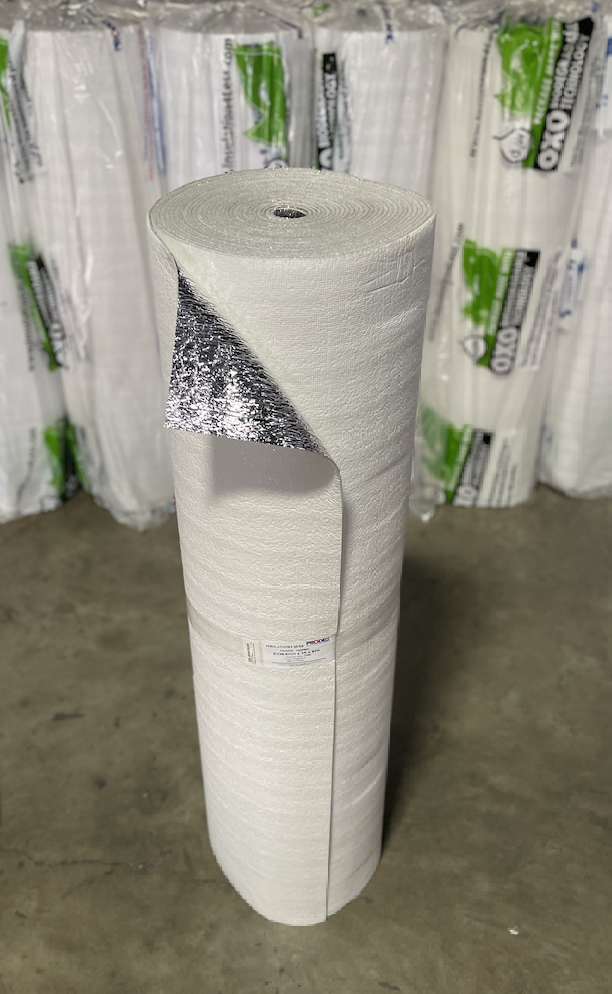

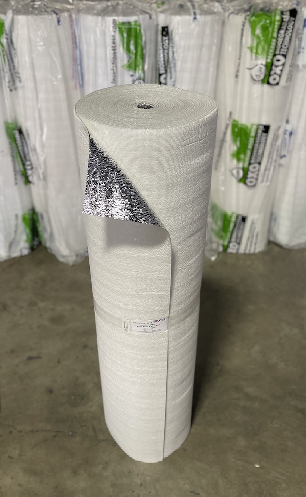

0.20" closed cell polyethylene foam with reflective reinforced foil on one side and plastic white finish film on the other side.



Prodex Difference: R-value unaffected by humidity : Prevents condensation : Prevents 97% of radiant heat transfer : Vapor barrier : Elastic : UV resistance : Does not promote mold or mildew : Does not provide for nesting of rodents, bugs or birds : Seals around nails (no leak) : Keeps its shape over time (doesn't collapse) : Rippled foil surface increases airflow : Member of US Green Building Council - Made with 100% recyclable virgin raw materials : Over 5 billion square feet sold worldwide.


Prodex adds an extra layer of credibly by submitting insulation rolls to the ASTM Rima International verification program. By having a third party verification, Prodex assures its clients that the insulation complies with industry standards, and is suitable for any construction system.


Beware of pitchmen for fiberglass and other mass insulation products. Ask them: "Doesn't the R-value you post come from the air pocket in the fibers? Isn't your testing done in an environment with no moisture? Why don't you show the parameters of your testing? Unlike mass insulation products, we provide the parameters of the testing. Every R-value on website is displayed as a link. Every R-value link goes to the parameters of the testing.


You get more than insulation when buying Prodex Total. You also get an air, radiant, and vapor barrier! Even if you have fiberglass insulation, you should still use Prodex Total to add r-value and keep moisture plus heat out of your fibers.


Understand what you're buying...


Ultimately, it's not our opinion or that of the competition that counts - See:


Video Reviews


Independent Reviews at Site Jabber. Site Jabber is the leading destination for customer reviews of businesses.


BBB report and reviews. For over 100 years, BBB has set the standard for ethical business behavior. We're proud to maintain an "A to A+" rating. We've been accredited since 2004. The BBB rating takes into account a company's size in its relation to complaints.


Insulation4Less is the only location in the USA and Canada where you can buy Prodex Total Insulation. Beware of sellers using Prodex product images, descriptions and test results to market other products.




Nominal thickness 5mm (+ or - 0.5mm) 0.2 inch

Insulation Layers

Reflective reinforced foil

Polyethylene foam

UV resistant White Facer



WHITE - Prodex Total 5M Plus Insulation - Combines the benefits of insulation with vapor, air and radiant barrier protection. That means you'll have a cool, dry structure in the summer and a warm, dry structure in the winter.

Prodex works great in hot and cold climates.

"A" to "A+" BBB rating, Independent customer reviews by Site Jabber and over 5 billion sq. ft. sold worldwide.

White Prodex Total 5M Plus
R-value 15.3 (*A: One layer, heat flow down)

Technical Brochure

How R-values are measured

CharacteristicsValueRegulation
Nominal Thickness0.20" |  5 mm
Flame Spread Index0ASTM E 84-10
Smoke Developed Index10ASTM E 84-10
Fungi ResistanceNo growthASTM C 1338
Cell StructureClosed
Water Vapor Permeance 0.09 PermsASTM E 9
Temperature and Humidity Resistance: No corrosion, no delamination, no loss of metalization - ASTM C-1258-08

Approval questions should be posed to your local code official. Questions?

Resistance to Growth of FUNGI

Aspergillus niger

Aspergillus avus

Aspergillus versicolor

Penicillium funiculosum

Chaetomium globosum

ASTM C 1338

Prodex Fast Action: One 4 ft x 175 ft (700 sq ft) roll with convenient staple tabs and adhesive on rolls. Prodex Fast Action is identical to Prodex 48 Inch with the exception of having adhesive running 175 feet on one side of roll.
Prodex Total 24 Inch: Set of (2) two 24 inch x 175 ft rolls (700 sq ft total) packaged in one bag. Convenient staple tabs. Nominal width designed for 24 inch on center studs.
.
Prodex Total 16 Inch: Set of (3) three 16 inch x 175 ft rolls (700 sq ft total) packaged in one bag. Convenient staple tabs. Nominal width designed for 16 inch on center studs.
Prodex 72 Inch: One 6 ft x 100 ft (600 sq. ft.) roll with convenient staple tabs.
Prodex Perforated: 4 ft x 175 ft (700 sq. ft.) roll with convenient staple tabs.
Prodex Under Concrete Insulation: 4 ft. x 175 ft. (700 sq. ft.) roll with convenient flange tabs for overlapping. Perfect for driveways and basements. Reflective aluminum foil attached to 5mm (13/64 inch) closed-cell polyethylene foam.
Prodex Garage Door Insulation kit: One - 24 Inch x 87 ft (174 sq. ft.) roll of Prodex Total Insulation + One roll of double sided adhesive tape (1-1/2 Inch x 60 yards) + One roll of reflective tape (2 Inch x 60 yards).
Prodex Assorted Cut Pieces: Approximately 525 to 650 square feet of assorted cut lengths of 4 foot wide (48 Inch) Prodex Total Insulation pieces. The lengths of the pieces typically range from 6 ft to 24 ft.
Prodex Total 10M: One 4 ft x 85.3 roll (342 sq. ft.) 10mm (0.4") - Twice as thick as regular Prodex, Increased R, More longitudinal strength + improved tearing resistance, Reduced condensation
