2NDS 72 INCH Prodex Total 6 ft x 100 ft (600 sq ft)
72 INCH - Prodex Total 5M Plus Insulation - "A" to "A+" BBB rating, Independent customer reviews by Site Jabber and over 4 billion sq. ft. sold worldwide - Combines the benefits of insulation with vapor, air and radiant barrier protection. That means you'll have a cool, dry structure in the summer and a warm, dry structure in the winter.
Prodex works great in hot and cold climates.
Compare:
72 INCH Prodex Total 5M Plus to Other Insulation Types, Bubble and Radiant Barriers, Reflectix, Tekfoil, Eco Foil, Tempshield etc..
Facts vs. Fictions - Measuring R-values
2NDS 72 INCH : 6 ft x 100 ft (600 sq ft) Prodex Total 5M
The roll might have nicks/cuts on outer layers
HIGHER R | STRONGER | SAFER
R-value 17 - Improved Tearing Resistance - Flame Spread 0
Insulation + Radiant barrier + Vapor Barrier + Air Barrier All in one product!
One solution for Heat, Condensation, Cold and Airflow. Reflective reinforced foil on each side of 5mm (0.2 inch) closed-cell polyethylene foam center.
Prodex Difference: R 17 unaffected by humidity : Prevents condensation : Prevents 97% of radiant heat transfer : Vapor barrier : Core sealed on both sides with flange : Elastic : Does not promote mold or mildew : Does not provide for nesting of rodents, bugs or birds : Seals around nails (no leak) : ICC-ES Recognized : Reflective reinforced foil on each side of 5mm (0.2 inch) closed-cell polyethylene foam center : Keeps its shape over time (doesn't collapse) : Rippled surface increases airflow : Green Product Certified : Over 4 billion square feet sold worldwide.
Independent Reviews at Site Jabber. Site Jabber is the leading destination for customer reviews of businesses.
BBB report. For over 100 years, BBB has set the standard for ethical business behavior. We're proud to maintain an "A to A+" rating. This rating takes into account a company's size in its relation to complaints.
Click to enlarge
Nominal thickness 5mm (+ or - 0.5mm) 0.2 inch
Click to enlarge
Creases in foil creates more airflow to enhance performance
Insulation Layers |
|---|
Reflective reinforced foil |
Polyethylene backing |
Closed-cell polyethylene foam |
Polyethylene backing |
Reflective reinforced foil |

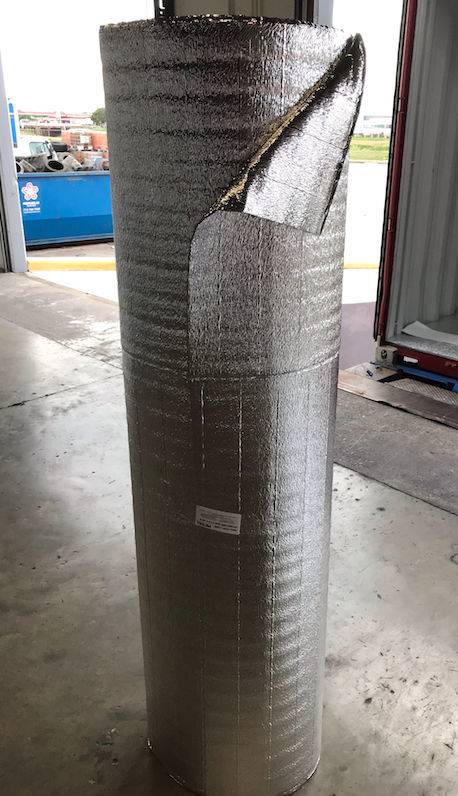

Roll size 72" x 16" X 16"
| Prodex Total 5M Plus |
| R-value 17 (One layer *A) |
R-value 25 (Two layers *B)
|
| Characteristics | Value | Regulation |
| Nominal Thickness | 0.20" | 5 mm | |
| Flame Spread Index | 0 | ASTM E 96-05 |
| Smoke Developed Index | 5 | ASTM E 84-10 |
| Fungi Resistance | No growth | ASTM C 1338 |
| Cell Structure | Closed | |
| Temperature and Humidity Resistance: No corrosion, no delamination, no loss of metallization - ASTM C-1258-08 | ||
Approval questions should be posed to your local code official. Questions? | ||
Resistance to Growth of FUNGI
Aspergillus niger
Aspergillus avus
Aspergillus versicolor
Penicillium funiculosum
Chaetomium globosum
ASTM C 1338
