INSTALL GUIDES: Ceilings

Use: Prodex 48 Inch, Fast Action, 10M, 72 Inch, White, 24 Inch, 16 Inch, Rustic, Reflective Bubble Reflective or Foil Fiberglass Vinyl

Equipment checklist: Reflective tape, double sided tape, Super Metal Sealant, utility knife and staple or screw gun - Refer to application.

Ceiling insulation is one of the most cost effective ways of controlling the outside elements. All of the reflective ceiling insulations listed above will reduce the amount of radiant heat that enters the home in summer by up to 97% while providing winter thermal protection. Using this insulation type will reduce the amount of energy required to heat and cool your home. This can also allow you to run your heating and cooling systems less making them last longer. It will can also potentially reduce the HVAC equipment size required thereby saving more money... Independent Reviews at Site Jabber

How To Insulate A Ceiling

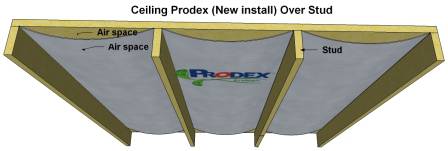

Ceiling Prodex (New Install) Over Stud: Use Prodex 48 Inch, Fast Action, 10M, 72 Inch, White, Rustic, Reflective Bubble Reflective or Foil Fiberglass Vinyl.

  1. Glue (super metal sealant), Tape (double sided tape), staple or screw to affix insulation to wall before installing your studs.
  2. To improve performance, let insulation sag to create air-gap (2+ inches).
  3. Tape seams with reflective tape or use Prodex Fast Action or 10M to avoid seam tape.

Two Layers Over/Under Stud:  Use Prodex 48 Inch, Fast Action, 10M, White, Rustic or 72 Inch.

  1. Glue (super metal sealant), Tape double sided tape, staple or screw to affix insulation to wall before installing your studs.
  2. To improve performance, let insulation sag to create air-gap (2+ inches).
  3. Tape seams with reflective tape or use Prodex Fast Action or 10M to avoid seam tape.
  4. Screw 2nd layer of insulation to underside of stud.

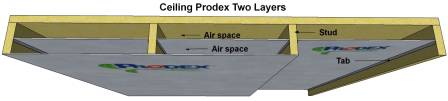

Ceiling Prodex Two Layers - One Layer Between and One Layer Under Studs:  Use Prodex 48 Inch, Fast Action, 10M, 72 Inch, White, Rustic and 24 Inch or 16 Inch.

  1. Depending on your stud spacing, staple one layer of Prodex 24 Inch or 16 Inch insulation between studs.
  2. Screw larger roll (Prodex 48 Inch, Fast Action, 10M, 72 Inch, White or Rustic insulation to underside of studs. Gluing the insulation improves appearance.
ceiling insulation prodex 2 layers one between, one under.jpg

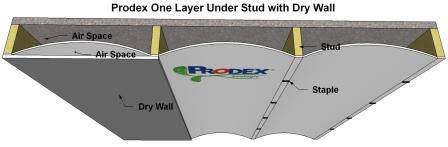

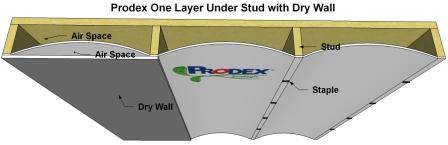

Ceiling Prodex One Layer Under Stud plus Drywall:  Use Prodex 48 Inch, Fast Action, 10M, White or 72 Inch

  1. Staple, screw or glue (super metal sealant) Prodex 48 Inch, Fast Action, 10M, 72 Inch, White or Rustic insulation to underside of studs.
  2. Push insulation into cavity to create 2 inch or more air-gap.
  3. Attach drywall.
basement wall insulation one layer under stud with drywall.jpg

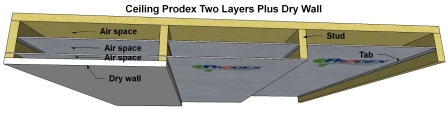

Ceiling Prodex Two Layers Between/Under Stud with Furring and Drywall:  Use Prodex 48 Inch, Fast Action, 10M, 72 Inch, White, Rustic and 24 Inch or 16 Inch.

  1. Depending on your stud spacing, staple or screw one layer of Prodex 24 Inch or 16 Inch insulation between studs.
  2. Screw, staple, Glue (super metal sealant) or larger roll (Prodex 48 Inch, Fast Action, 10M, 72 Inch, White or Rustic insulation to underside of studs.
  3. Attach 1 inch lathe board (furring strip) through underside of insulation.
  4. Attach drywall.

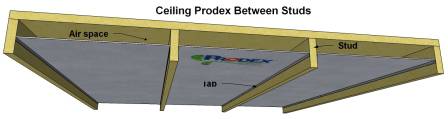

Ceiling Prodex One Layers Between Studs:  Use 24 Inch or 16 Inch.

  1. Depending on your stud spacing, staple or screw one layer of Prodex 24 Inch or 16 Inch insulation between studs.
